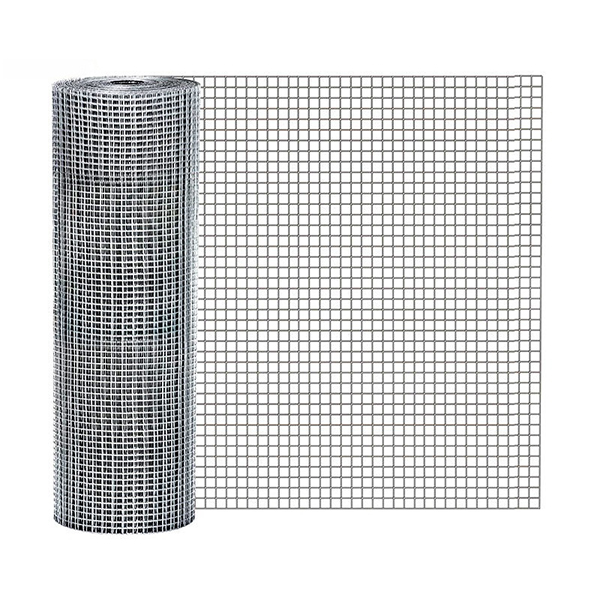

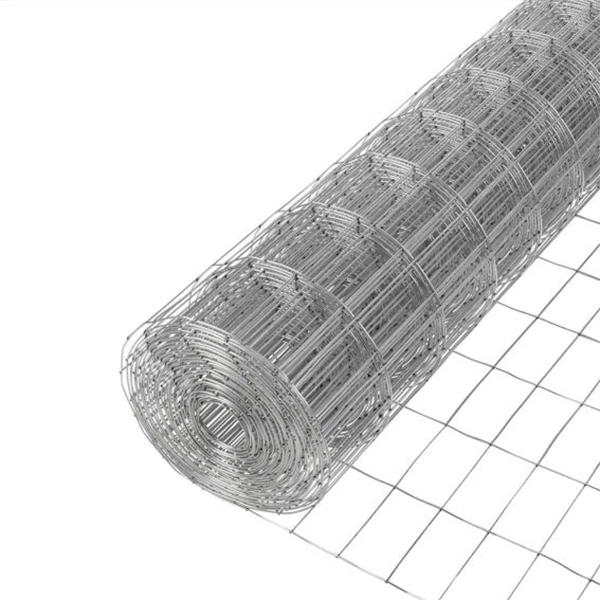

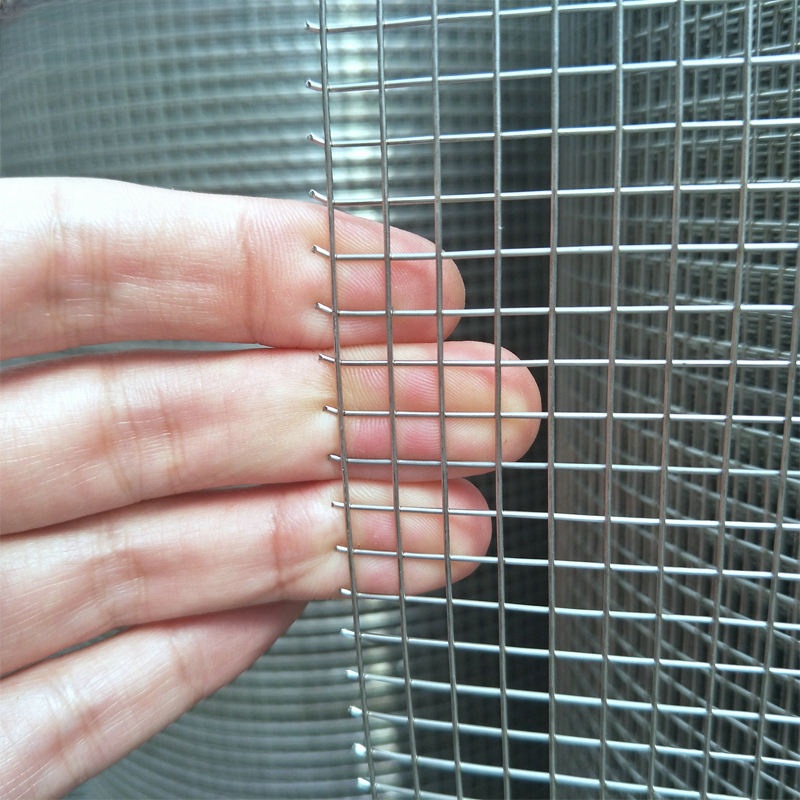

Top Sale 2x2 PVC Coated Welded Wire Mesh ROLL
Material: Low carbon steel wire Q195
Processing mode: welded

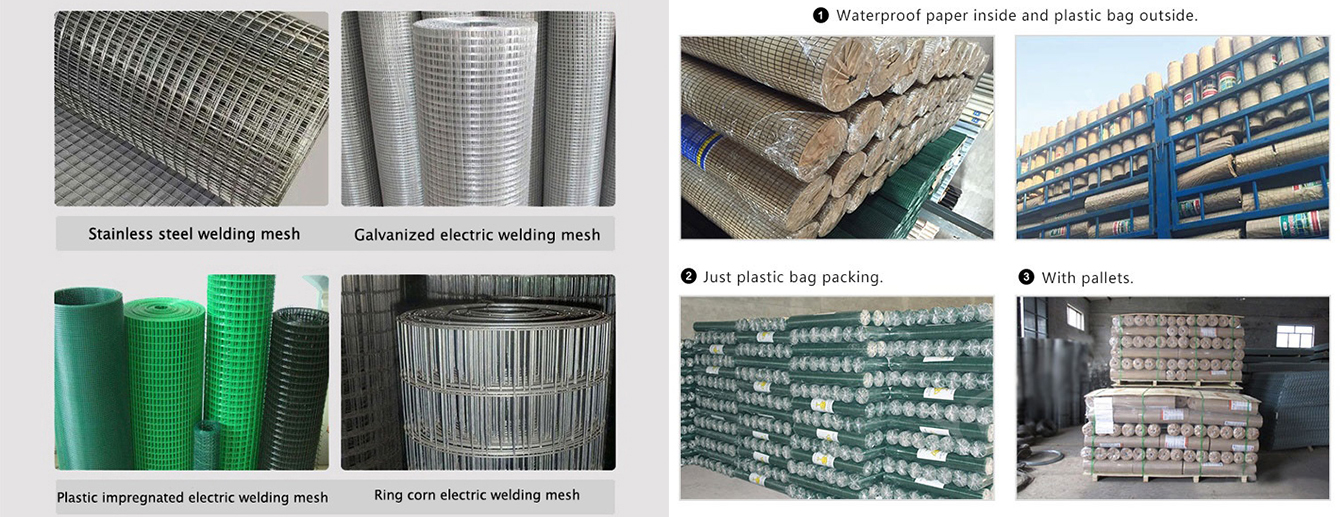

Classification:
1.Black wire welded mesh + pvc coated ;
2.Electro galvanized welded wire mesh + pvc coated ;
3.Hot dipped galvanized welded mesh + pvc coated.
(PVC coated colors:dark green ,light green ,blue ,yellow ,white ,black ,orange and red ,ect.)
Application: Industry ,agriculture ,building ,transportation and mining .Mainly used in wall building ,concrete placing ,kinds of fencing and decoration.
PVC COATED WELDED MESH ROLL | ||||
Hole sieze | Wire Diameter | Width & Length | ||
In inch | In mm | Before coating | After coating | Width:0.5m-2.0m Length:25m,30m Other sizes can be made as request. |
1/2'' | 12.7mm | 0.45mm-1.6mm | 0.85mm-2.1mm | |
3/4'' | 19.05mm | 0.45mm-1.6mm | 0.85mm-2.1mm | |
1'' | 25.4mm | 0.88mm-2.1mm | 1.35mm-2.6mm | |
2'' | 50.8mm | 1.0mm-1.82mm | 1.45mm-2.4mm | |
2''x4'' | 50.8x101.6mm | 1.24mm-1.82mm | 1.7mm-2.4mm | |
1/4'' | 6.35mm | 0.56mm-0.88mm | 1.0mm-1.4mm | |
3/8'' | 9.52mm | 0.457mm-1.06mm | 0.91mm-1.6mm | |
5/8'' | 16mm | 0.457mm-1.4mm | 0.91mm-2.0mm | |
Note : PVC coated thickness can be adjusted . | ||||
