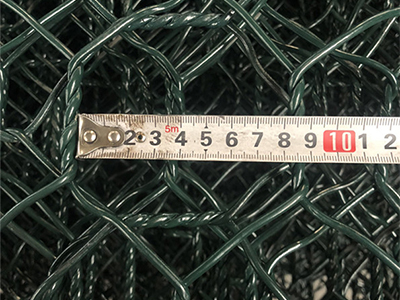

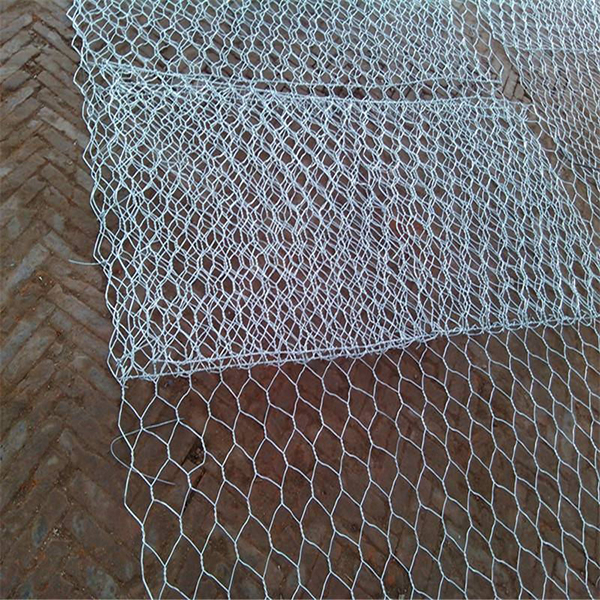

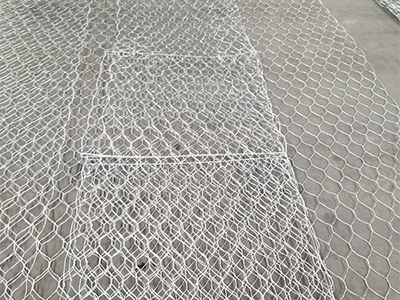

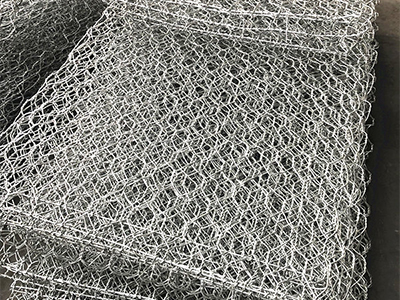

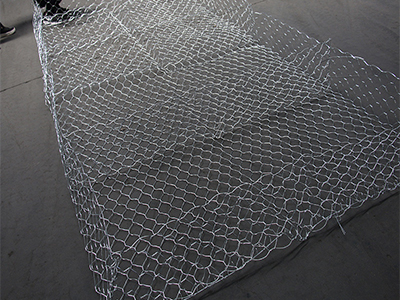

Gabion iron wire basket are made of hot dipped galvanized steel wire /heavy galvanized coating steel wire/ PVC coated wires, the
mesh shape is hexagonal style.
The gabion retaining wall are used widely in slope protection,mountain rock holding,gabion for river bank protection
Standard | ASTM 975 Standards: | |||
style 1 Galvanized wire as per ASTM A 641, class 3 soft temperstyle 2 Same as style 1 with extra coating with PVC.style 3 Zn-5Al or Zn-10Al coated wire as per ASTM A 856, also known as Galfan | ||||
EN 10223-3 standard: | ||||
Galvanized wire meets EN 10244-2 and old BS 443Wire tensile strength is between 380N/mm2 and 550N/mm2 as per BS 1052. | ||||
Aperture (mm) | Wire Diameter (mm) | Edge wire (mm) | Gabion Sizes (m) | Material (zinc coating) |
60x80mm | 2.2mm/2.7mm | 2.4mm/3.4mm | 6x2x0.3m/2x1x0.5m | 1.galvanized steel wire 2.high zinc steel wire |
80x100mm | 2.7mm/3.0mm/3.2mm | 2.4mm/3.4mm | 2x1x1/3x1x1m/4x1x1m | |
100x120mm | 3.0mm/3.05mm/3.2mm | 3.4mm | 3x1x1/4x1x1m/5x1x1m | |
bar between mesh | ||||
80x100mm | 2.7mm/3.0mm/3.2mm | 2.4mm/3.4mm | 2x1x3m/2x1x6m | |
 |  |  |
3x1x1m Gabion Baskets wire diameter: 2.7mm/3.0mmedge wire: 3.4mm Tie wire: 2.2mm Mesh size: 80x100mm/100x120mm Zinc coating: 40-60g/㎡ High zinc: 250g/㎡ | 4x1x1m Gabion Baskets wire diameter: 2.7mm/3.0mm Edge wire: 3.4mm | 6x2x0.3m Gabion Baskets Wire diameter: 2.2mm Edge wire: 2.7mm |
 |  |  |

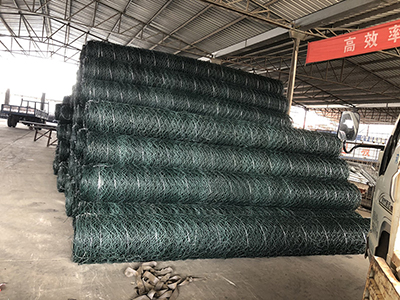

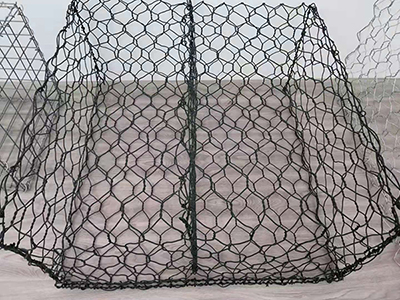

PVC Coated Gabion Protection Net wire diameter: 2.2/3.3mmedge wire: 3.4/4.4mm | PVC Coated Gabion Baskets Wire diameter: 2.7/3.7mmedge Wire: 3.4/4.4mm Size: 2x1x1m/3x1x1m | 1x1x1m PVC Coated Gabion Basket Wire diameter: 2.7/3.7mmedge Wire: 3.4/4.4mm Size: 3x1x1m/4x1x1m |
